Automatic Drilling Machine PCDM2.3

Overview

Automatic Drilling Machine from Hira, designed & programmed to perform an ingenioustask
like Drilling & Milling where conventional machines will not be able to perform as expected .
As its easy input methodology & program storage is beneficial for the tool room.
A machine has been focused on sustainability & productivity at the same time.
High accuracy & low operation cost is main stand out feature of Automatic Drilling
Machine.

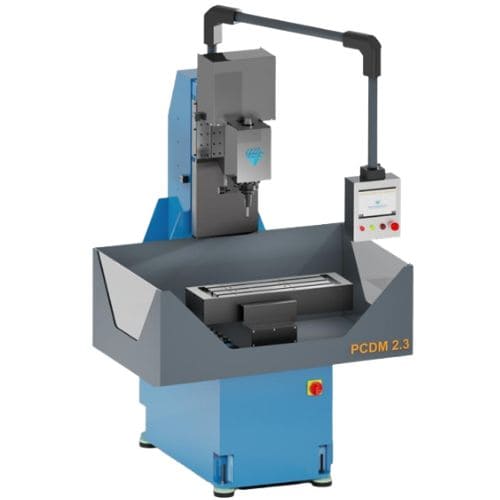

Automatic drilling Machine

Get the Perfect Drilling Solution for Your Application

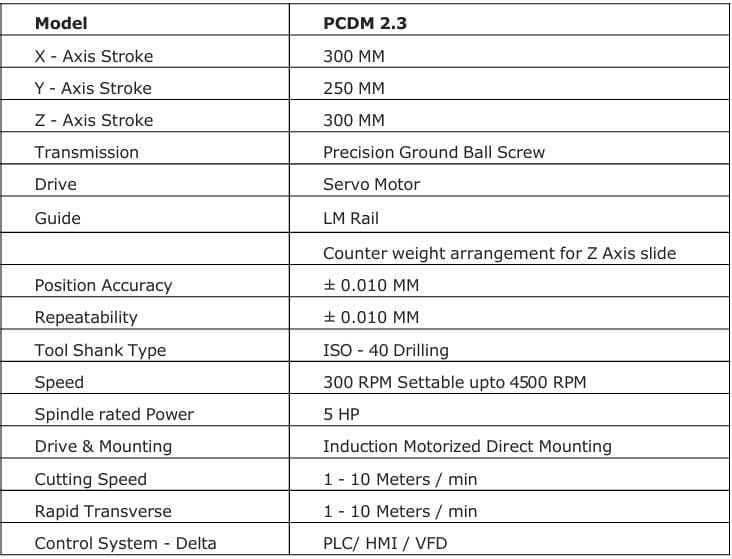

Technical Specification:

machine-layout-automatic-drilling-machine-2.3-table

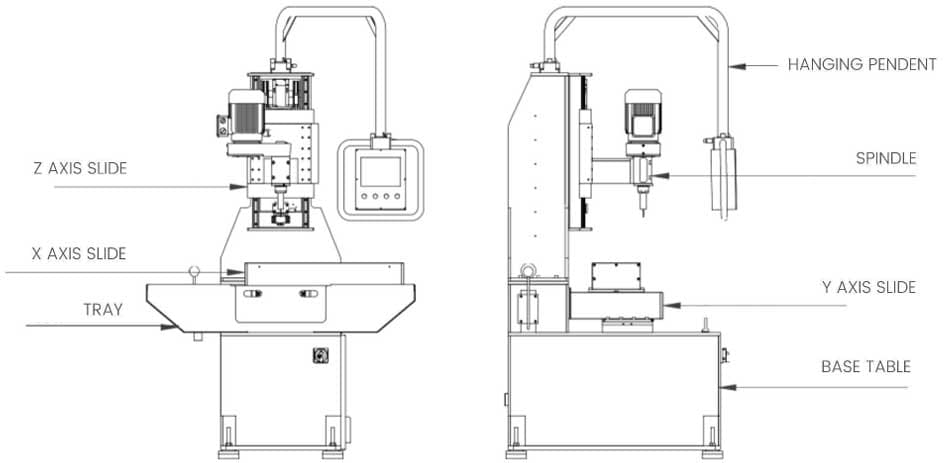

Machine Layout (AutomaticDrilling Machine 2.3) –

machine-layout-automatic-drilling-machine-2.3

Operation

1.Precision-Drilling-Operation

Precision Drilling Operation

2.PCD-Holes

PCD Holes

3.Slot-Keyway-Operation

Slot Keyway Operation

4.Pocket-Milling-Operation

Pocket Milling Operation

5.Finished-Product

Finished Product
