Overview

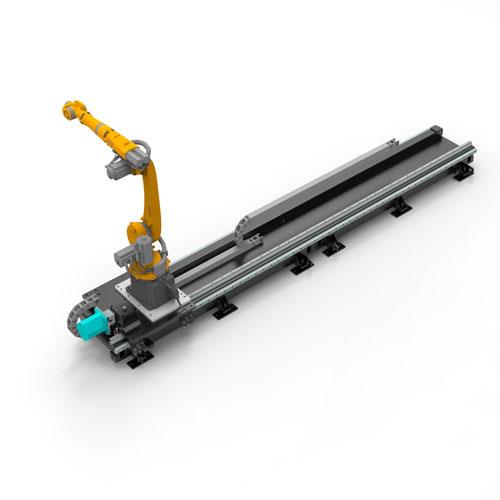

Today, we are revolving towards Industry 4.0, where we are learning & implementing digitization with effective performance on the shop floor. Robot Track is intended & feasible for Robot movement, which we can use to reduce loading & unloading time of operation. Same Robot we can use for multiple workstations. We can achieve a high production rate with minimum Idle time.
It allows robots to perform multiple tasks and is becoming increasingly common in settings where translational motion is needed.
Key Features –
- Heavy Payload range
- Modular Construction
- High Velocity
- High Repeatability
- Accuracy
Get a Tailored Robot Track Solution for Your Production Line
PCDM (Precision Compact Drilling Machine)
The Machine has always been focused on sustainability and productivity at the same time. The perfect combination of high accuracy and low operation cost is the main stand-out feature of the PCDM family.
PCDM 1.1
The Machine has always been focused on sustainability and productivity at the same time. The perfect combination of high accuracy and low operation cost is the main stand-out feature of the PCDM family.
Specifications :-
- X- Axis Slide Stroke – 140 MM
- Y- Axis Slide Stroke – 110 MM
- Z- Axis Slide Stroke – 110 MM
- Position Accuracy – +- 10 microns
- Drive – Precision Ground Ball Screw
- Power – Stepper Motor / Servo Motor (Optional)
- Guide – Crossed Roller
- Spindle :-
Type – ER 20 Drilling
Drive – Direct
Speed – 3000 rpm (Settable up to 5000 rpm)
Power – Induction Motor (1 HP)
PCDM 2.1
The Machine has always been focused on sustainability and productivity at the same time. The perfect combination of high accuracy and low operation cost is the main stand-out feature of the PCDM family.
Specifications :-
- X- Axis Slide Stroke – 300 MM
- Y- Axis Slide Stroke – 250 MM
- Z- Axis Slide Stroke – 300 MM
- Position Accuracy – +- 10 microns
- Drive – Precision Ground Ball Screw
- Power – Stepper Motor / Servo Motor (Optional)
- Guide – LM Rail
- Spindle :-
Type – ER 20 Drilling
Drive – Direct
Speed – 3000 rpm (Settable up to 5000 rpm)
Power – Induction Motor (2 HP)
PCDM 3.0
The Machine has always been focused on sustainability and productivity at the same time. The perfect combination of high accuracy and low operation cost is the main stand-out feature of the PCDM family.
Specifications :-
- X- Axis Slide Stroke – 400 MM
- Y- Axis Slide Stroke – 350 MM
- Z- Axis Slide Stroke – 400 MM
- Position Accuracy – +- 10 microns
- Drive – Precision Ground Ball Screw
- Power – Servo Motor
- Guide – LM Rail
- Spindle :-
Type – ER 25 Drilling
Drive – Direct
Speed – 3000 rpm (Settable up to 5000 rpm)
Power – Induction Motor (3 HP)
